Shure SM7dB Active Dynamic Studio Microphone – Grade 2

Description

Shure SM7B Dynamic Studio Microphone Details

• Dynamic vocal mic with built-in preamp
• Ideal for direct or minimal recording chains
• Builds on the smooth, warm broadcast sound of the SM7B
• Improved interference resistance to minimise noise and electrical issues

The Shure SM7dB Active Dynamic Microphone is a dynamic vocal microphone with a built-in preamp that delivers smooth, warm vocals with plenty of clean gain, ideal for direct interface recording or simple vocal chains. The preamp offers either 18 or 28 dB of boost, as well as a bypass mode for original SM7B-like performance. The SM7dB also provides EQ controls with bass roll-off and presence boost controls.
The SM7dB also has improved resistance to electrical noise, hum, and interference for cleaner, clearer audio. This new model is ideal for everything from professional studio recording, home use, podcasting, and content creation like streaming or video voiceover.

Full Description

Built-in boost
A faithful approach to the SM7B and its warm, rich vocal sound, the SM7dB adds an in-line preamp when used with phantom power, this preamp offers 18 or 28 dB of transparent gain for appropriate levels for direct recording, as well as a bypass mode for original SM7B sound.

Faithful broadcast sound
Preamp aside, the SM7dB provides the exact same performance, sound quality, and circuitry as the SM7B, giving the warm, familiar broadcast sound that has become a studio, podcast, and content standard. With the identical bass roll-off and presence boost EQ settings to cut through the mix, the SM7dB is great for professional musicians, studio engineers, streamers and YouTubers alike.

Features:

• Cardioid dynamic microphone with a smooth vocal sound
• Identical circuitry and design to SM7B for a warm broadcast sound
• Built-in preamp boosts gain with 18 dB, 28 dB, and bypass mode
• Low-cut and presence boost EQ settings for adjustable tonality
• Improved resistance to electrical hum, interference, and noise
• Internal air suspension shock isolation system eliminates mechanical noise
• Included pop filter prevents plosives and helps with close-up vocal performances
• Yoke mount for easy mounting on microphone stands and studio arms
• Cardioid polar pattern with consistent sensitivity and frequency response
• Durable build protects microphone capsule for long-term reliability

SPECIFICATION:

• Type:Dynamic (moving coil)
• Polar Pattern: Cardioid
• Frequency Response: 50 Hz to 20 kHz
• Output Impedance:
  • 150Ω in Bypass Mode
  • 27Ω in Preamp Mode
• Sensitivity:
  • -59 dBV/Pa (1.12 mV) Flat Response Bypass Mode (at 1 kHz, open circuit voltage)
  • -41 dBV/Pa (1.12 mV) Flat Response +18 Preamp Mode (at 1 kHz, open circuit voltage)
  • -31 dBV/Pa (1.12 mV) Flat Response +28 Preamp Mode (at 1 kHz, open circuit voltage)
• Polarity: Positive pressure on diaphragm produces positive voltage on Pin 2 relative to Pin 3
• Net Weight: 837 g (1.875 lbs)
• Housing: Black enamel aluminium and steel case with black foam windscreen

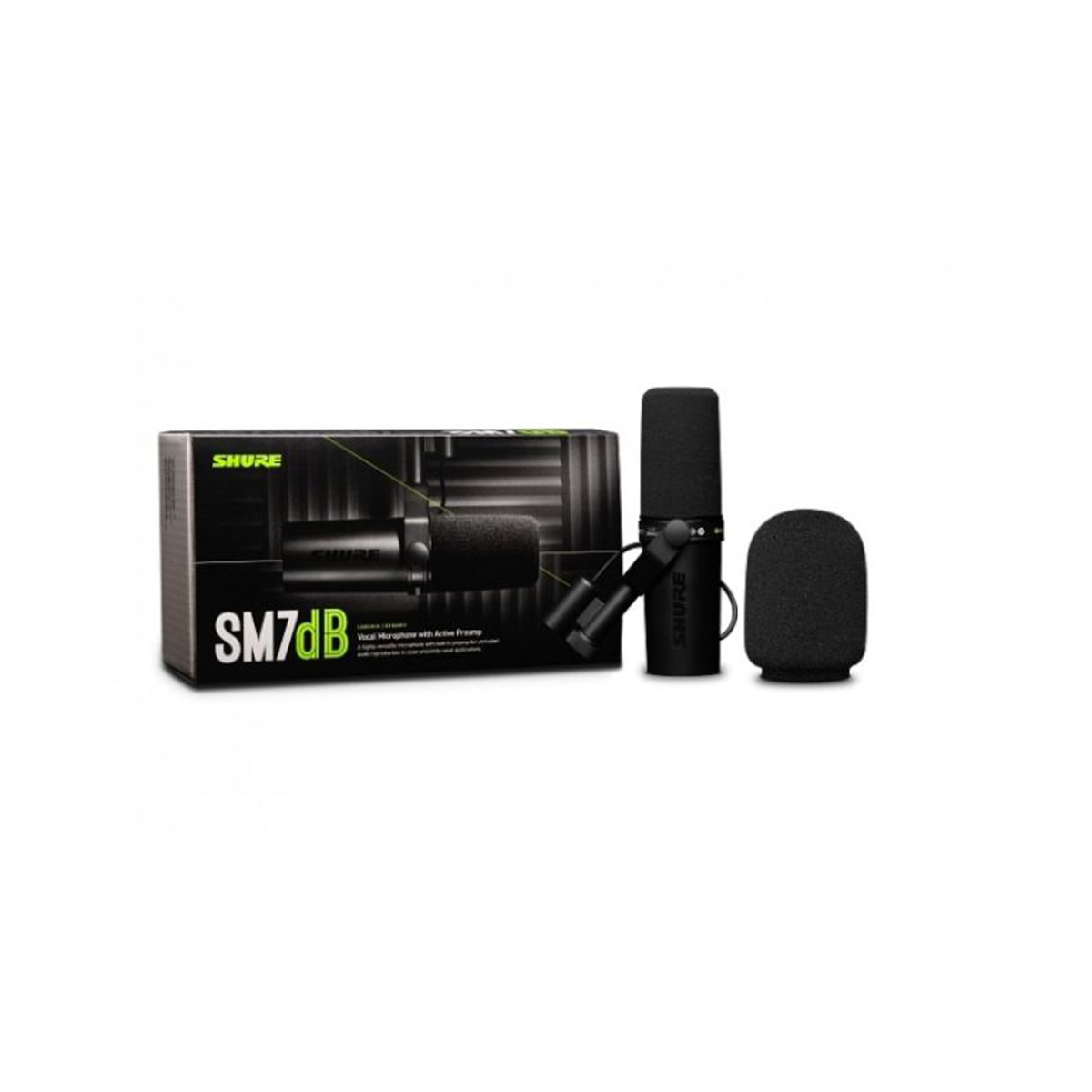

What’s in the Box

• Shure SM7dB Vocal Microphone with Built-In Preamp
• Shure RK345B Broadcast-Style Windscreen for SM7dB
• 3/8″ Thread Adapter
