Proel FLASH12AV2 12” Active Speaker with 2-Channel Mixer and DSP

Description

Bi-amplified 2-way loudspeaker system

For years PROEL FLASH loudspeakers have provided thousands of users all around the world with the finest sound in its class together with versatility, portability and stylish design. Now the whole series has been renovated introducing major upgrades in performance, features and design.

Features:

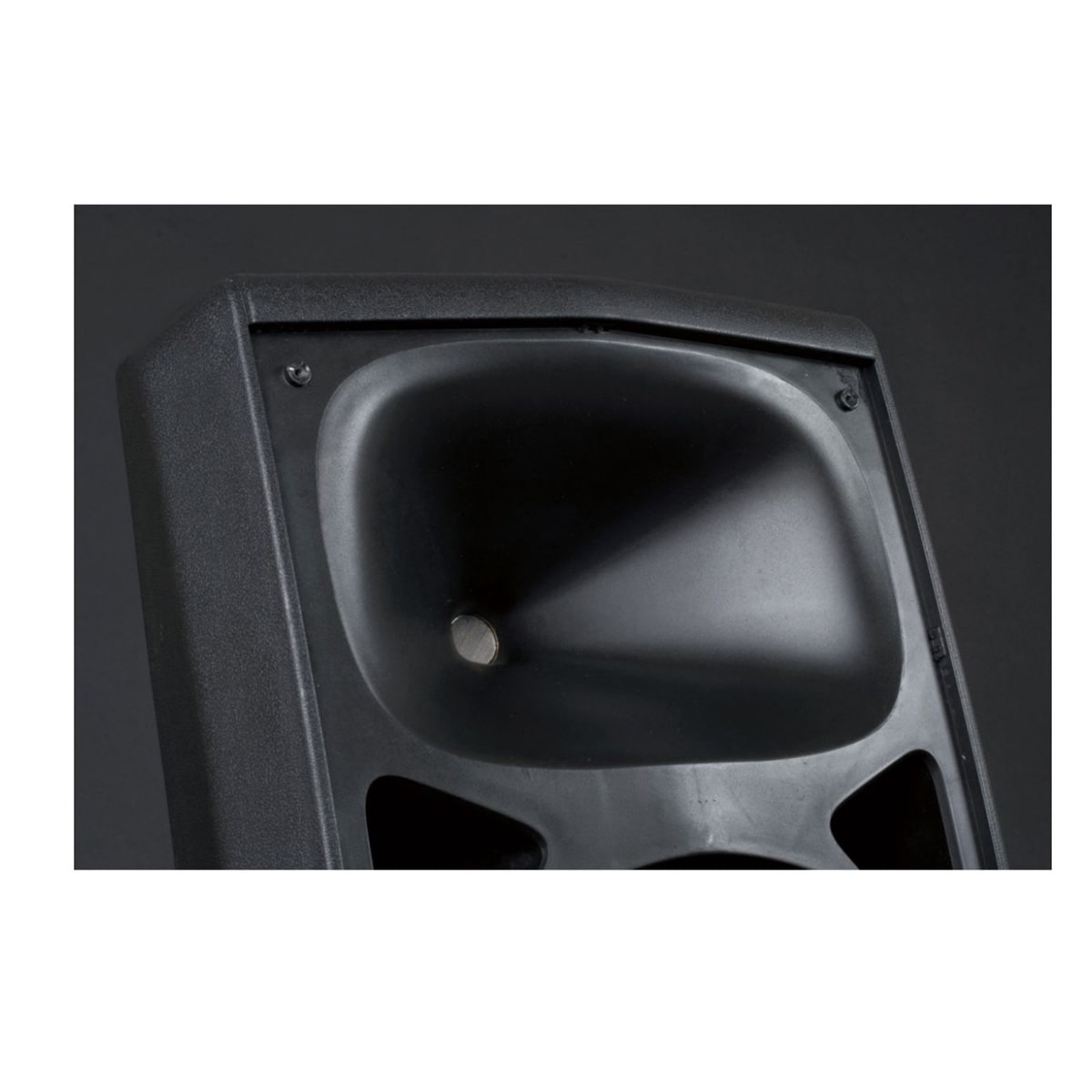

• 1” CELESTION compression driver on a 90° x 60° constant coverage horn
• 12” woofer with 2” voice coil
• 600 W total peak power
• 50 W continuous class AB amplifier for the high frequencies
• 250 W continuous class D amplifier for the low frequencies
• Switch Mode Power Supply (SMPS)
• MIC and LINE inputs with independent level control and
  NEUTRIK connectors
• 2-band EQ – Dual CLIP LIMITER
• SPL MAX 124 dB
• Frequency response 60 Hz – 20 kHz
• Lightweight polypropylene cabinet with extensive framing system
• Slanted shape for the use also as a stage monitor
• 1 top handle and 2 aluminum side handles
• 4 x M10 flying points

Specification:

• System type: 2-way vented enclosure
• High Frequency Device: 1’’ compression driver
  with aluminum voice coil
• Low Frequency Device: 12” woofer with 2″ VC
• Angular Coverage: 90° H x 60°V
• Total peak power: 600 W
• HF Amplifier Continuous Power: 50 W Class AB
• LF Amplifier Continuous Power: 250 W Class D
• Power Supply: SMPS
• Processing: Analog
• Frequency Response 50 Hz – 20 kHz
• Max SPL: 124

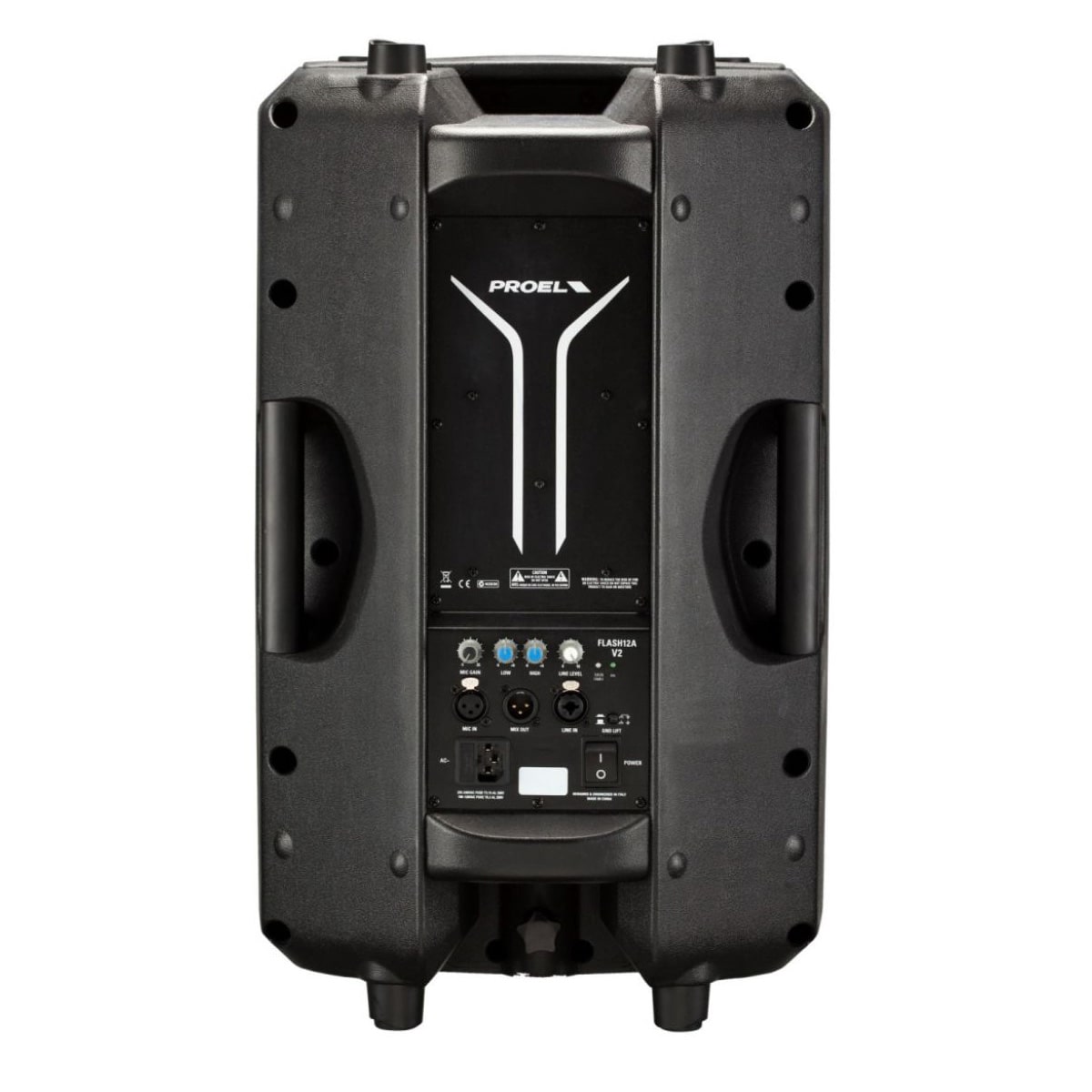

• Connectors: IN: Combo, XLR F
  MIX OUT: XLR M
• Controls: MIC LEVEL, LINE LEVEL, LOW EQ, HIGH EQ, GND LIFT
• Power Supply: 230 VAC or 120 VAC 50/60 Hz
• Weight 16.5 kg (36.4 lb)
• Monitor Taper: 42°
• Flying System: 4 x M10 – top/bottom
• Construction: Polypropylene
• Cabinet Colour: Black
• Mounting Pole: 1 x bottom
• Dimensions (W x H x D) 390 x 630 x 360 mm

What’s in the Box:

• 1 x Proel FLASH12AV2 Active Speaker
• 1 x Power Cable
• 1 x User Manual
