Powerful JBL 18 inch subwoofer SRX718S | Passive JBL Sub

Description

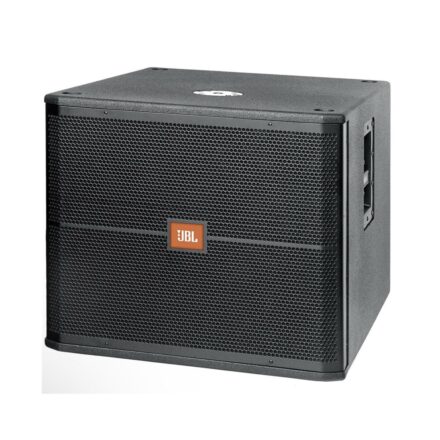

JBL 18 inch subwoofer SRX718S Details:

The JBL 18 inch subwoofer SRX718S is a Powerful, compact, high power subwoofer system containing a 2268H neodymium magnet, patented Differential Drive®, 18-inch woofer in a front-loaded, vented enclosure.

The enclosure is designed to present a minimum frontal area. The system offers complete input connection flexibility for compatibility with a variety of cabling schemes.

• 18 inch, 2268H Differential Drive® subwoofer for extended low-frequency output
• Large port area for reduced distortion
• 20 mm threaded pole socket for solid, secure satellite speaker mounting

SPECIFICATIONS:

• System Type: 18 inch bass-reflex subwoofer
• Frequency Range (-10 dB): 31 Hz – 220 Hz
• Frequency Response (+3 dB): 34 Hz – 220 Hz
• Input Connection Modes: Switchable, +1/-1 or +2/-2
• Recommended Crossover Frequencies: 80 Hz, 24 dB / octave HPF
• 80 Hz, 24 dB / octave LPF
• Power Rating (Continuous1 /Program / Peak): 800 W
  / 1600 W / 3200 W
• Maximum SPL2: 130 dB SPL peak
• Sensitivity (1w @ 1m): 95 dB SPL
• LF Driver: 1 x JBL 2268H 457 mm (18 in) Differential Drive woofer
• Nominal Impedance: 8 ohms
• Active Tunings: dbx DriveRack, all models
• Mounting: Top mounted M20 threaded socket for optional SS4-
• BK pole
• Enclosure: Rectangular, 18 mm, 13-ply birch plywood
• Finish: Black DuraFlex finish
• Grille: Powder coated, black, 16-gauge perforated steel with
• Acoustical transparent charcoal foam backing.
• Input Connectors: Neutrik® Speakon® NL-4 (
• ⁠Dimensions (H x W x D): 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)
• Net Weight: 36 kg

What’s In The Box:

• 1 x JBL 18 inch subwoofer SRX718S
