Description

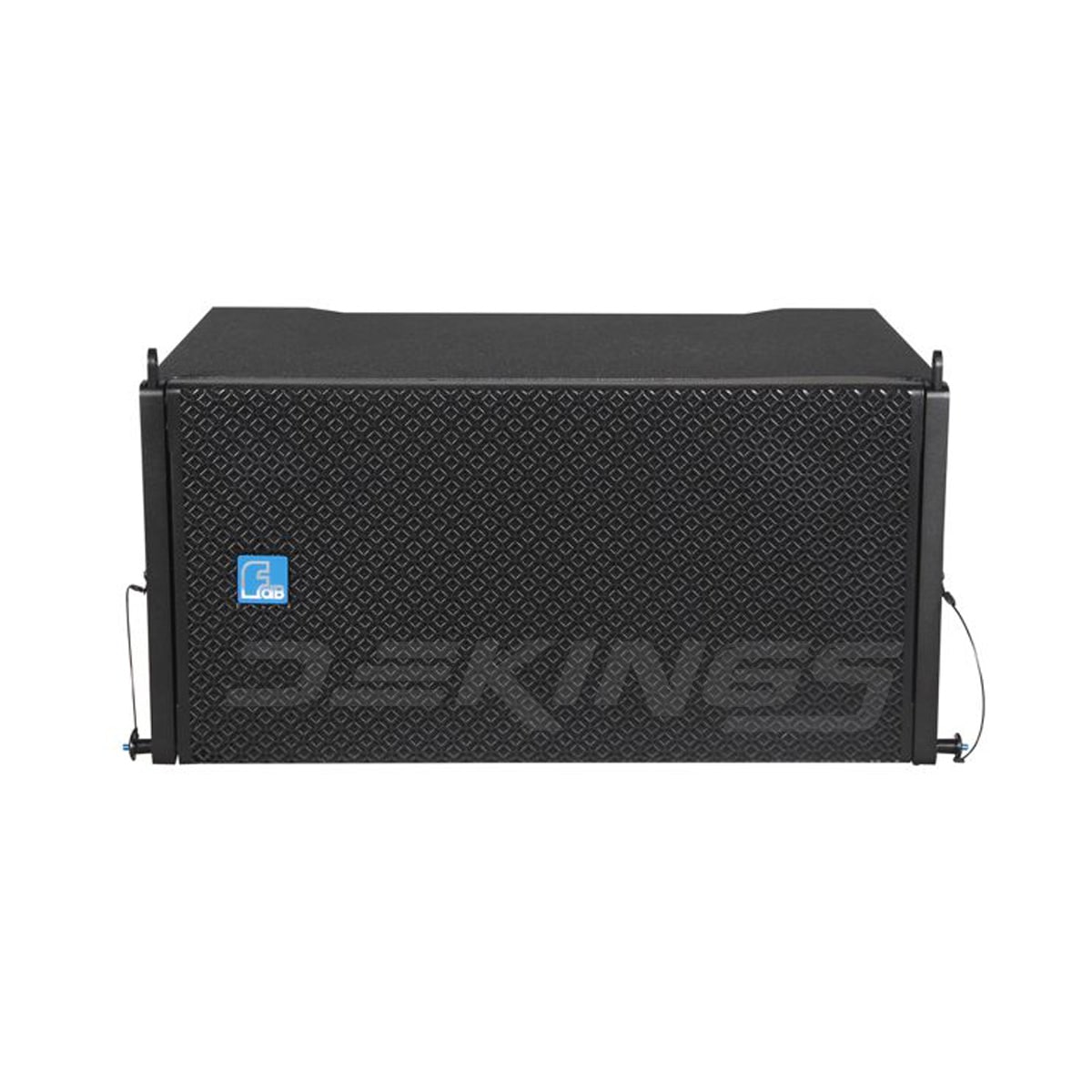

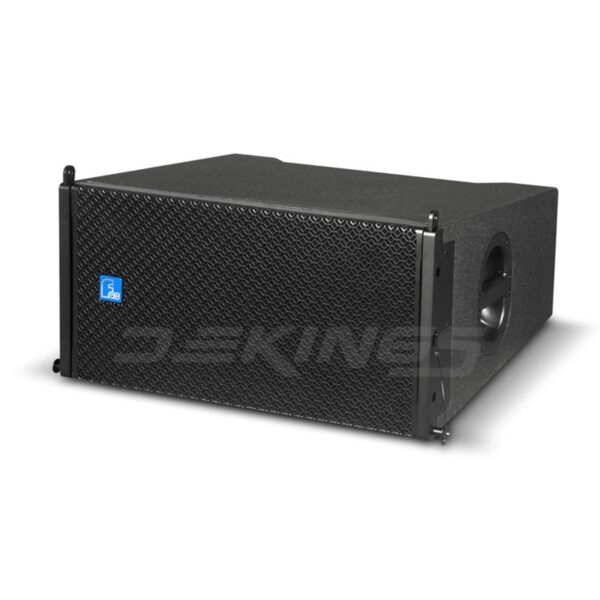

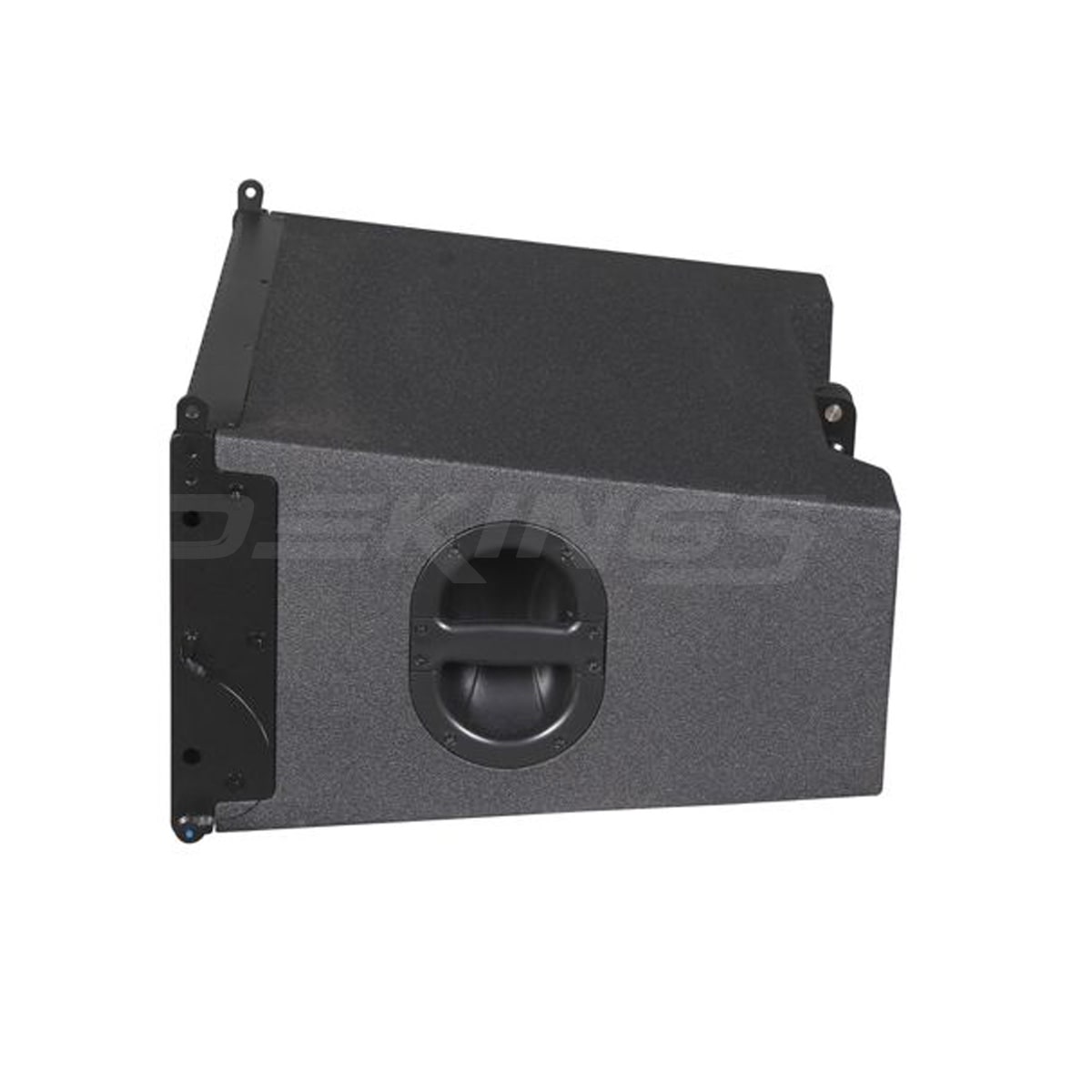

DLA410 is a compact, light weight, high SPL, 3-way line array speaker. It features low distortion mid-bass unit, mid-high coaxial driver with special waveguide and horn, accurate coverage, uniform changes, three-point hanging system, the whole system installation is fast, stable and safe. Unit configuration:2×10″ high efficiency neodymium mid-bass units, 1×1.4″ exit throat 90mm voice coil neodymium MF driver and 44mm HF driver coaxial neodymium unit. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. DLA410A is an active line array speaker with two channels digital amplifier with DSP.
FEATURES
- Product parameters have been entered into EASE loudspeaker database
- Mid-high coaxial unit, real 3-way speaker, clear and powerful.
- Passive way, simple operation, save amplifiers

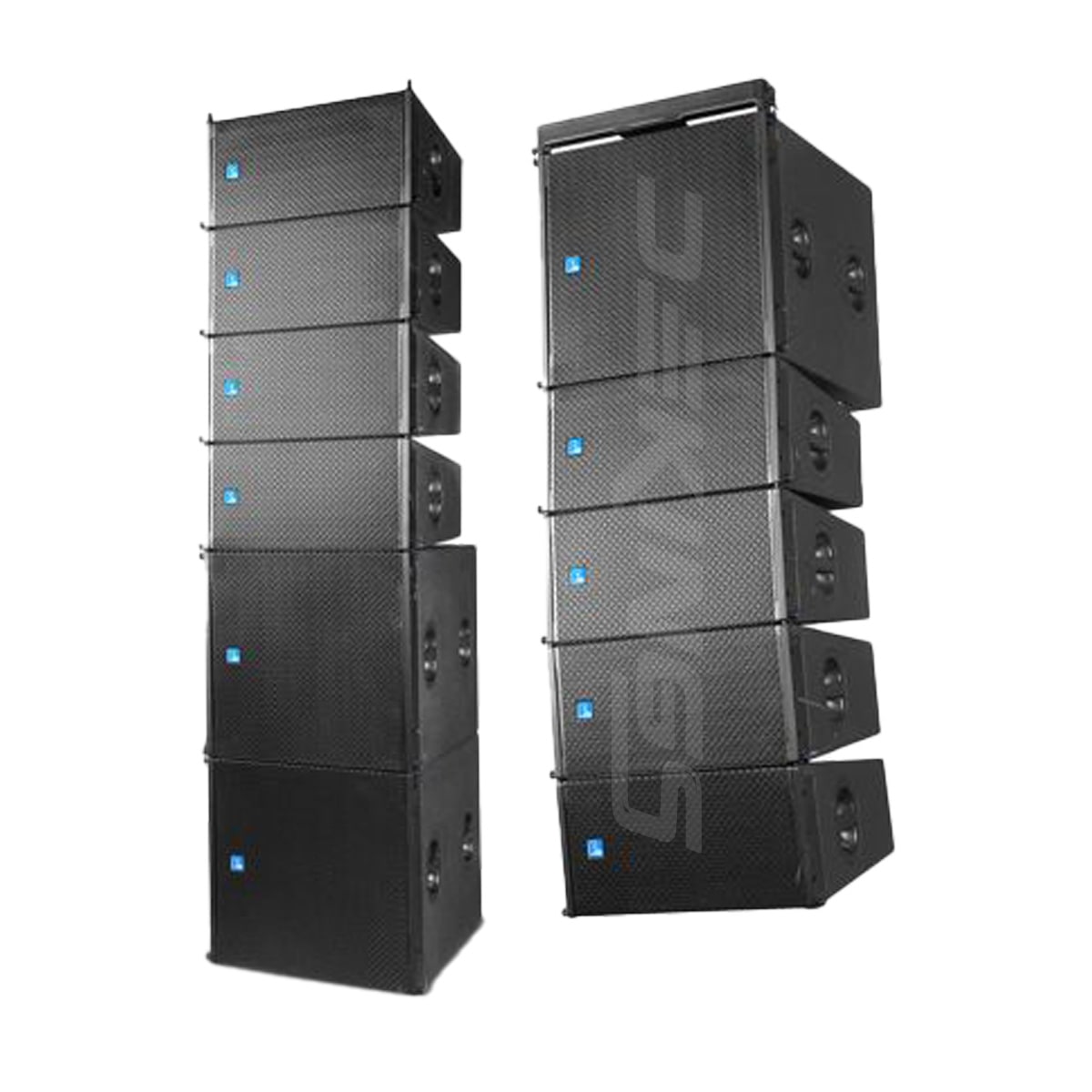

- Quick setup for hanging and stacking.
- Applications: theaters, concert halls, multifunction halls, lecture halls, auditoriums, stadiums, live houses, and touring
- MODEL: DLA410
- FREQUENCY RESPONSE(-3dB): 60Hz-18kHz
- FREQUENCY RESPONSE(-10dB) :55Hz-20kHz
- DRIVERS: 2×10″(250mm)/3″voice coil LF
- 1×1.4″(36mm)/3.5″voice coil MF
- 1×1.4″(36mm)/1.7″voice coil HF
RATED POWER: 500W RMS,2000W peak - SENSITIVITY: 101dB 1watt/1meter
- MAXIMUM SPL: 127dB continuous,133dB peak
- IMPEDANCE: 8 ohms nominal
- DISPERSION(-6dB): Horizontal: 90°
- Vertical coverage: Varies,depending on Vertical coverage: Varies,depending on
array length and configuration array length and configuration
CROSSOVER FREQUENCIES: 700Hz，6KHz passive - INPUT CONNECTORS: 2×Speakon NL4
- PACKAGE SIZE: 537mm×400mm×720mm
- NETWEIGHT: 26 kg/pc
- GROSS WEIGHT: 30 kg/pc
What’s in the Box:
- 2 × DLA 401 Passive Line Array Module (Pair)
- 1 × Mounting Bracket or Rigging Hook
- 1 × User Installation Guide
